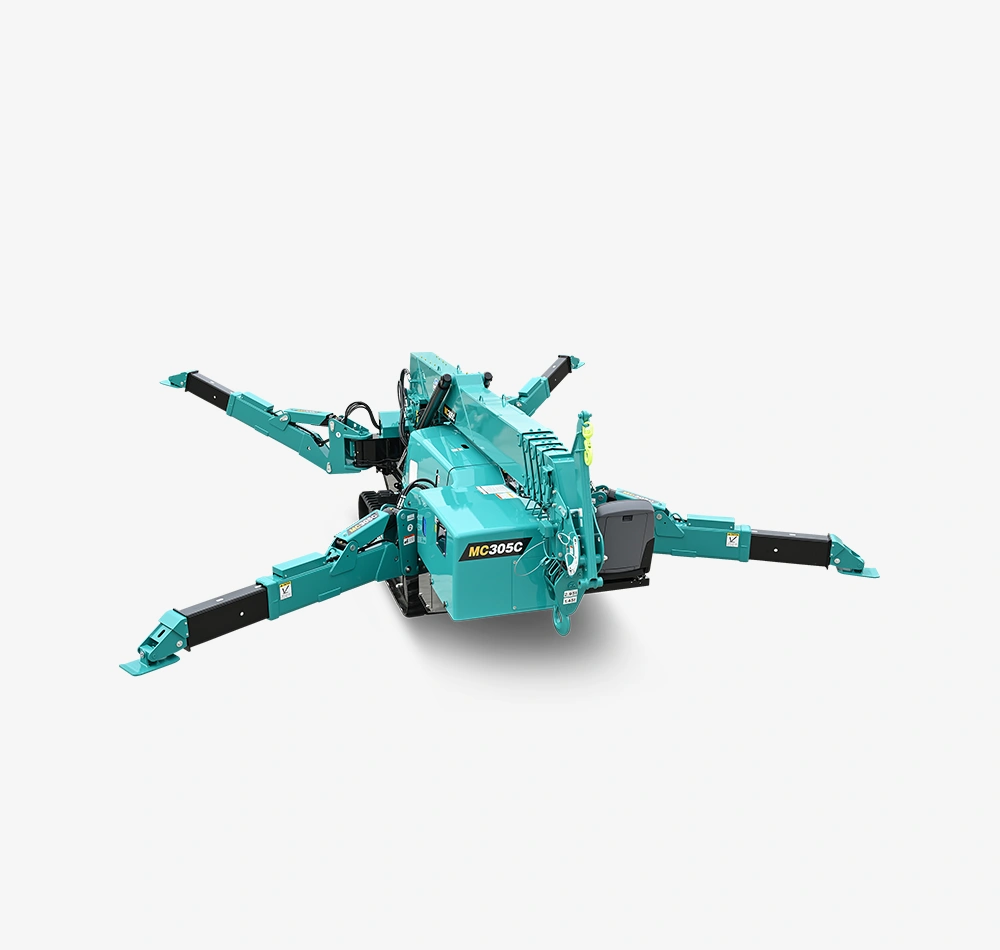

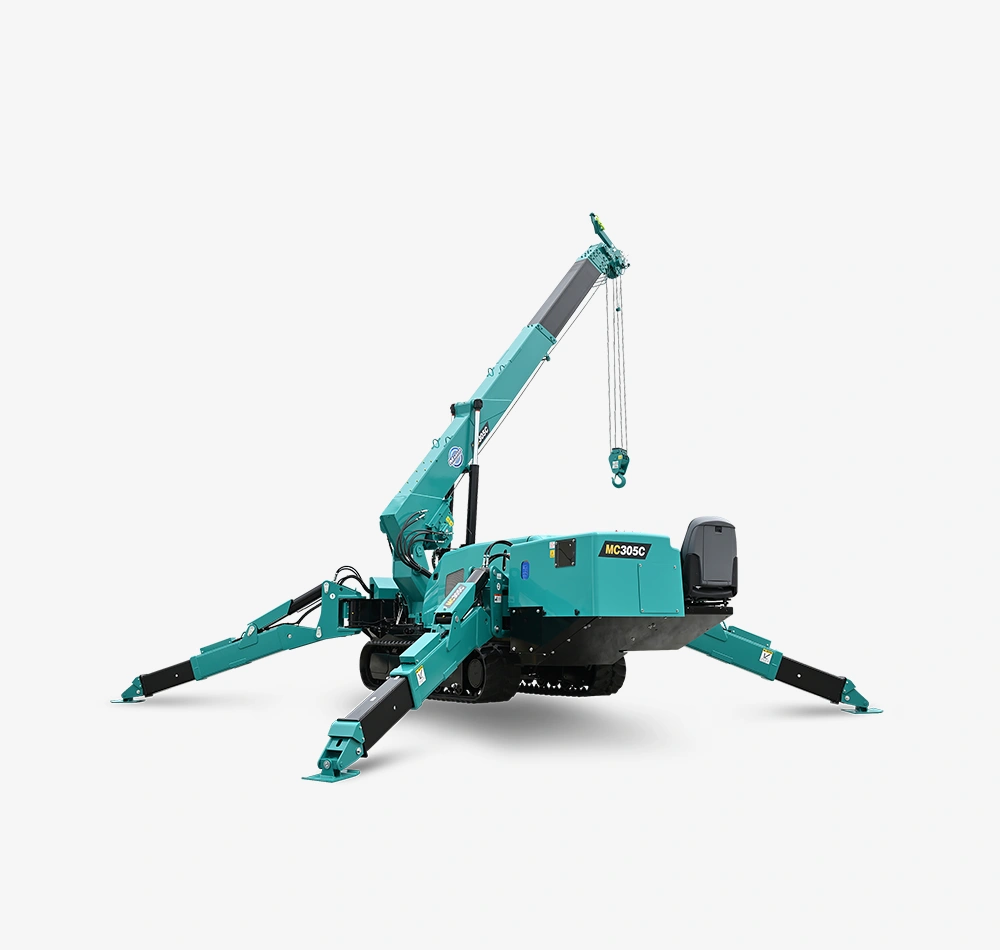

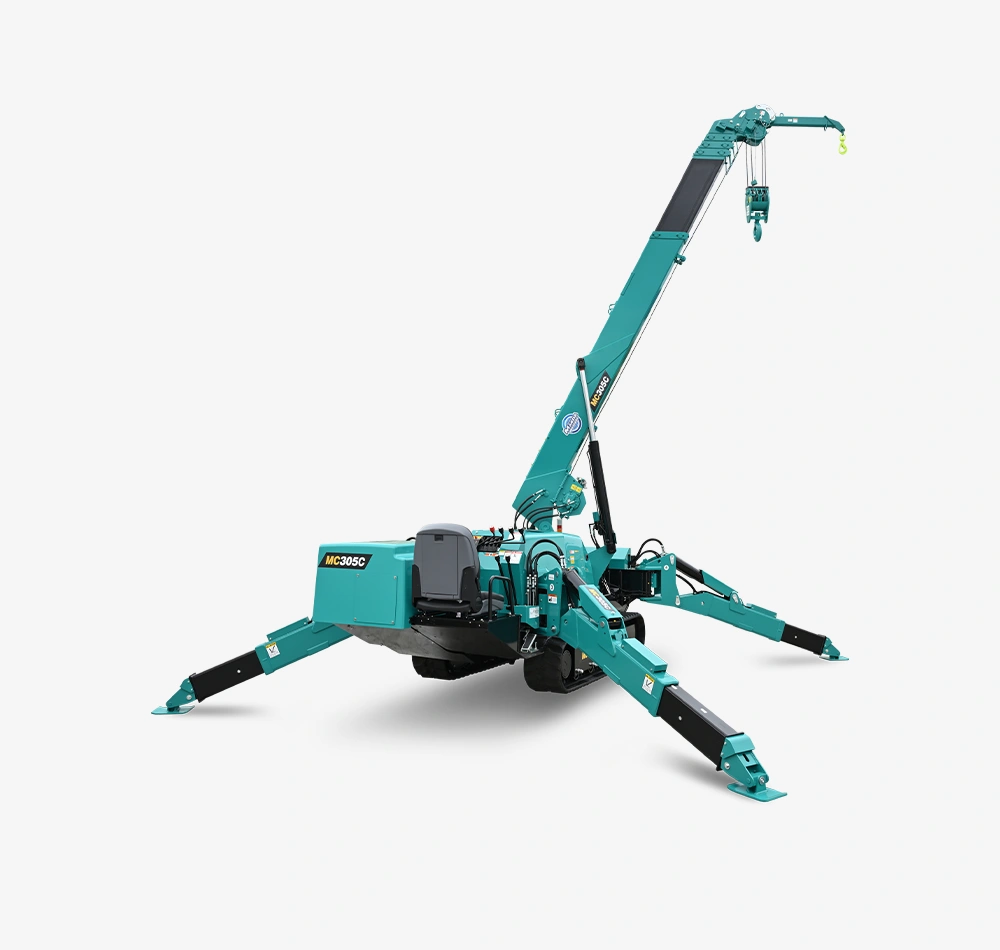

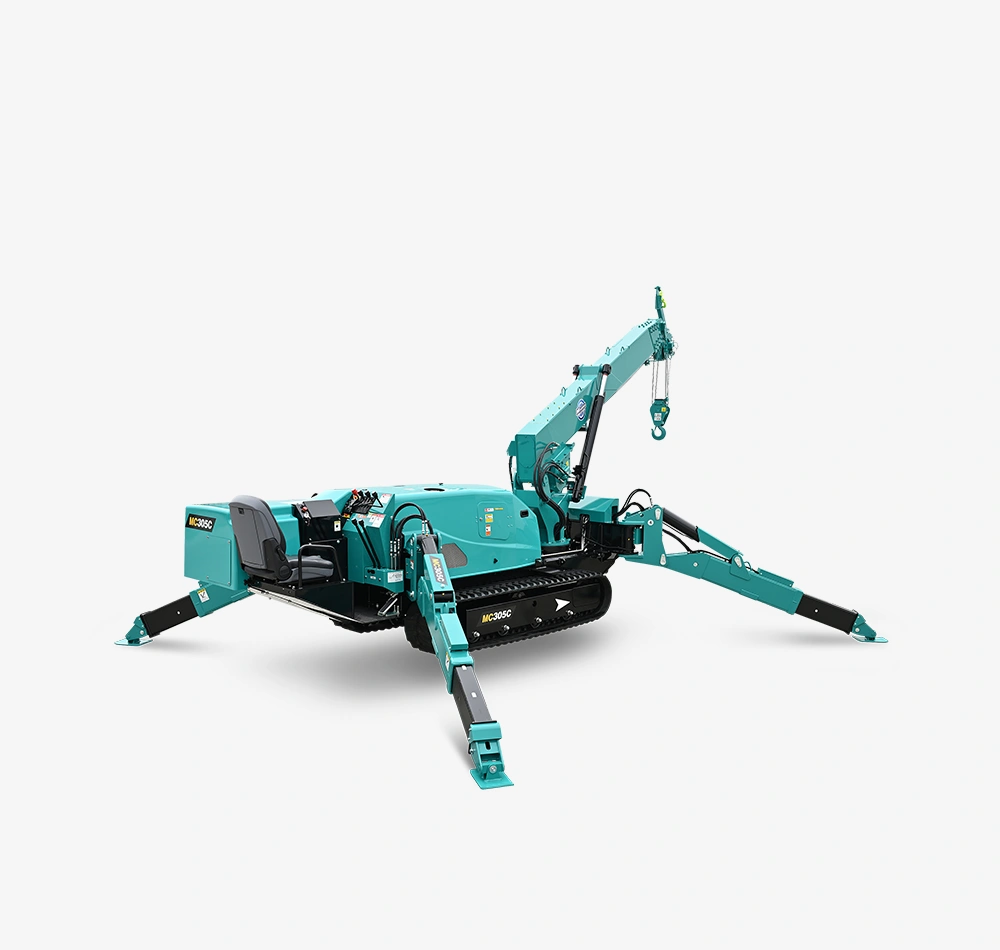

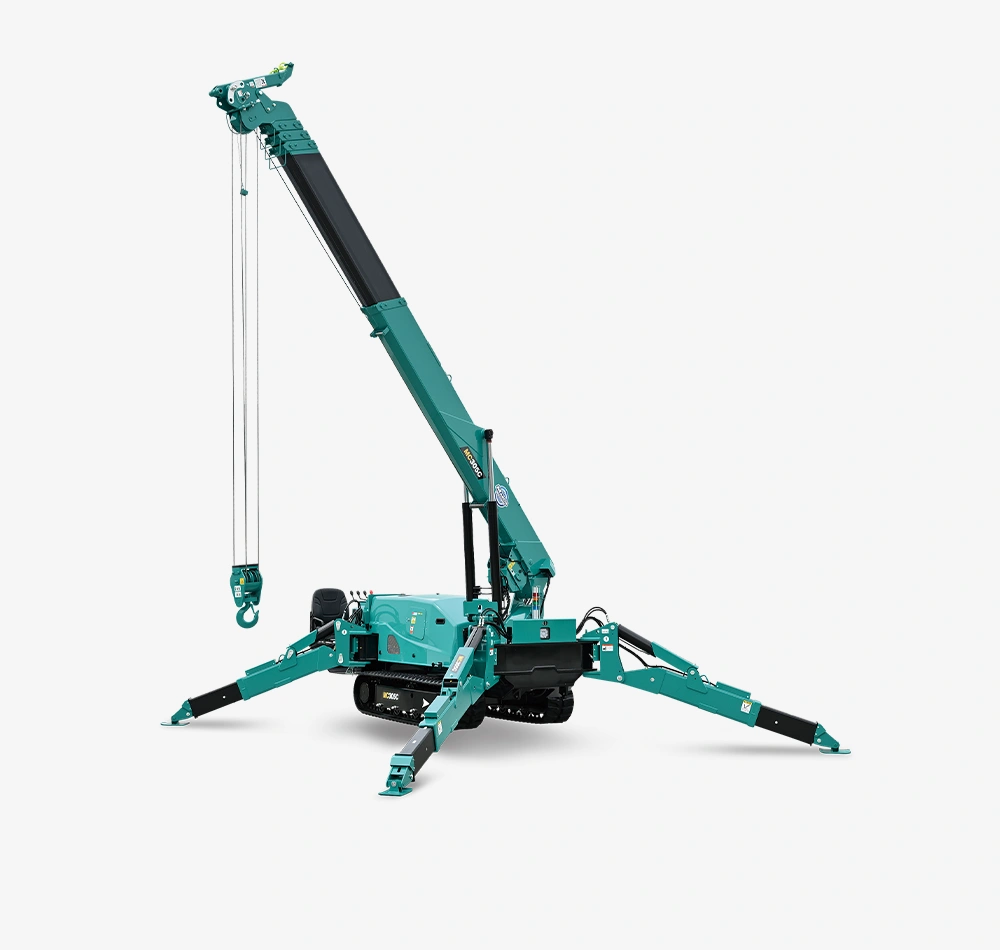

MC305C-3 Mini Crawler

Maeda mini crawler cranes
Outrigger Safety System
4Fall/2Fall Hook Block
Two Way Remote Controller
Lifting Capacity 2.98t x 2.5m

The small footprint of Maeda mini crawler cranes allow travel through confined and narrow worksites without the need for unnecessary removal of existing structures.

Maeda mini spider cranes are compact and light weight and can be lifted up to a site by larger cranes or service elevators and are easily moved in place on the rubber crawlers.

Maeda mini cranes have in built safety systems to ensure the utmost safety on site such as:

  • Moment limiter – for setting working envelopes
  • Tipping prevention
  • Interlocking system
  • Tilt alarm

Capacity

2.98t ×2.5 m

Max. working radius

12.16m x 0.26t

Max. Lifting Height

Approx. 12.52m

Max. Lifting Height (underground)

-16.09m (4 falls)

Boom

5-section hydraulically telescoping boom of pentagonal box construction

Boom Length

3.695 – 12.485 m

Boom Telescoping

8.79m/26sec

Swing System

360°continuous/2.4rpm

Traction system

Drive

Hydraulic motor driven, stepless speed changer

Travel speed

0 – 2.8 km / h

Gradability

23°

Ground pressure

36.3kpa [0.37kgf/cm2]

Engine

Model

Yanmar diesel engine 3TNV80

Fuel

Diesel

Fuel tank capacity

40 L

Overall length x overall width x overall height

4195 × 1280 × 1695 mm

Machine weight

3,900 kg

Standard Equipment

Overwind protection, Load indicator, Hydraulic safety valve, Wire rope latch, Level, Machine body inclination alarm, EMO switch, Travel lock lever, Outrigger interlock device, Moment limiter, Rotary lamp

Optional Equipment

White rubber tracks, Single fall hook, Searcher hook

* Further details, please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
