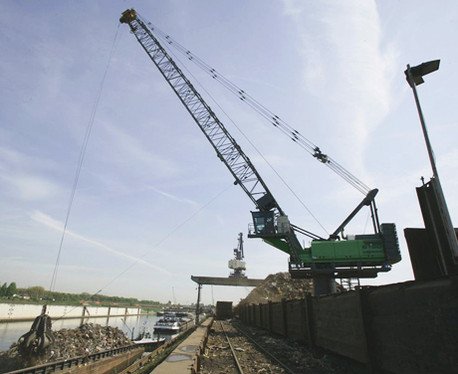

6200HCC Port Crane

Lifting Capacity : 121t
Boom height : 60m
Engine capacity : 570kW

Engine

Model – Caterpillar C18 Tier III
Output – 470 kW/639 HP bei 1800 min-1
optional:
Model – Caterpillar C18 Tier II
Output – 570 kW/775 HP bei 1800 min-1
Direct injection, turbo charged, intercooler, reduced emission
Cooling – Water cooled
Air filter – Dry air filter with precleaner, automatic dust discharge, main and safety element, pollution indicator
Fuel tank – 1300 l
Electric system – 24 V
Electric installation – simple and very clear design
Batteries – 2 x 150 Ah, main switch

Hydraulic-system

4 circuit hydraulic system for best funktion and performance for the duty cycle crawler crane, all functions can be driven simultaneously. The hydraulic pumps are variable displacement piston pumps with individual regulation for each pump. The pumps are equipped with an energy-saving flow-on-demand control and preasure cut-off for high-efficency and reduced loss of energy.
Oil flow – max. 2 x 420, 1 x 200, 1 x 300 l/min
Pressure – max. 340 bar
Filtration – High-efficiency filtration with long-time change interval, pollution indicator
SENNEBOGEN HydroClean micro filtration with water separation, optional
Hydraulic tank – 1000 l / 1350 l
Steering – Proportional, servo hydraulics, precise control of the working functions, 2 servo joysticks for operating movements, additional functions through switches and foot pedals – in a clear and ergonomic layout
High efficiency through well sized hydraulic valves and lines
Central test ports for hydraulic circuits
Safety valves for all hydraulic circuits

Swing drive

2 Compact planetary reduction gears with hydraulic piston motor,

Parking brake – Multi-disc brake, spring-loaded
Swing bearing – Strong rollerbearing, sealed
Swing speed – 0-3,2 rpm, stepless

Cooling system

Large sized cooling system for the engine and hydraulics. Very energy efficient and noise emission reduced through thermically controlled drives

Upper carriage

Torsion resistant box type design, precision machined, brass bushes for the boom pivot
Clear, very servicefriendly design longitudinal installation of the engine

Undercarriage

Heavy duty wide gauge crawler undercarriage Maintenance-free tractor type tracks with
hydraulic chain tension
Tracks – flat shoes 1200 mm
Drive system – Compact planetary reduction gear with axial piston motor with hydraulic brake valves for each track side
Brake Safety – multi-disk brake, spring loaded
Travel speed -0-1,3 km/h

Working equipment

Decades of experience and state-of-the-art computer simulation guarantes highest
stability and durability
Boom hoist – winch Axial piston hydraulic motor, planetary gear, double winch 2 x 80 kN
Safety brake – Spring-applied multi-disc brake
Crane safety – State-of the-art safe load indicator with graphic display, hoist limit switch, pressure relief valves, rope limit switch

Operators cab

SENNEBOGEN PORTCAB – spacious cabin resiliently mounted, with excellent all-round view, large floor window pane, air-sprung comfort seat, control instruments based on latest ergonomic standards, powerful heating and temperature-adjustable air conditioning,
sun protection, ventilation via flipper and sliding windows, filter for external and circulating air ventilation, deposit options, excellent room feeling

SENNEBOGEN maXcab resiliently mounted with sliding door, excellent ergonomics, airconditioning and heating with temperature setting, fresh air / circulating air filter, air suspended comfort seat, excellent 360º visibility, SENNEBOGEN diagnostic system

Service weight

Operating weight 6200HCC with counterweight 66t and 30t, Fixed elevated and forward positioned port cab, cat walks, and stairways, boom 52,3m, hoist rope and hook

240t – 250t

Note: The shown weights may vary with different equipment
