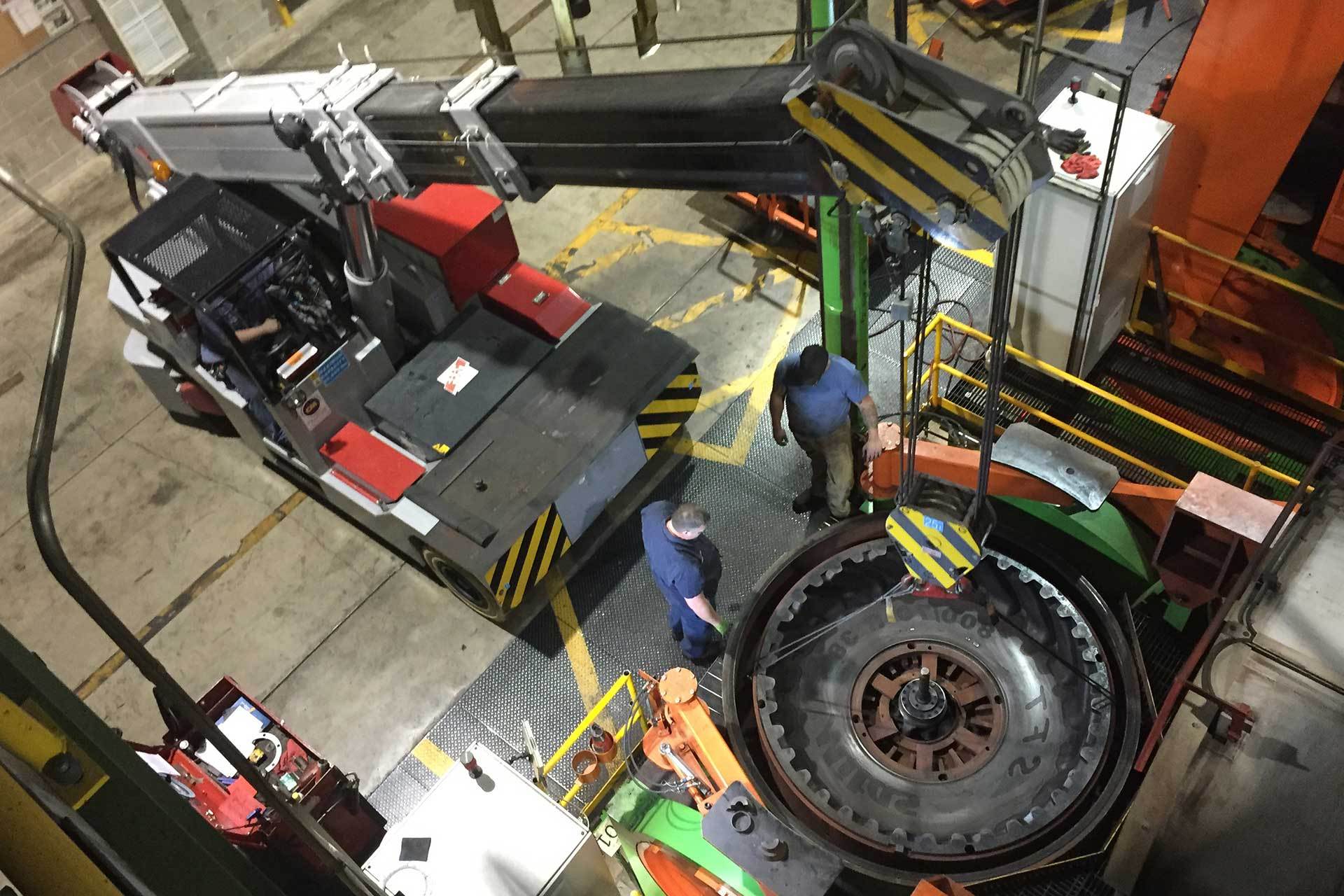

250E-D Pick and Carry Crane

Capacity: 25 t
Width: 2290 mm
Gross Weight: 25000 kg

Crane Frame

Eight-wheel frame fabricated from preformed and welded steel plate with built-in counterweight

Traction (E)

by DC 28 kw 96V reversible electric motor, controlled by inverter,
electromagnetic control on disk brake

Engine (D)

Diesel 4 cylinders water cooled

Transmission (D)

Automatic (hydrostatic) “automotive”. Differential axle. Max speed 15 Km/h

Battery (E)

96V 1450Ah battery, battery meter on dashboard

Brakes

Foot hydraulically operated brakes (disc on front, drums on rear wheels). Parking hand brake mechanically operated.

Suspension

Oscillating rear axle with mechanical lock

Steering

Power steering operated through own hydraulic circuit by a hydraulic cylinder fitted between the articulated power unit and the crane frame allowing 120° steering fitted with safety valves and filters. 6 kW – 96 V motor driven pump (e) power steering operated through own hydraulic circuit. Fitted with safety valves and filter (d)

Hydraulic System (D)

Electric proportional distributor controlled with joystick. Fitted with filter and safety valves. Maximum hydraulic pressure 220 Bar.

Wheels

Nr. 2 rear superelastic 3.55/65-15” – Nr. 6 front superelastic 300 R.15” (e) nr. 2 rear pneumatic 12.00-24 – nr. 4 front superelastic 12.00-24 (d)

Boom

>Boom fabricated from preformed and welded quality steel plate. Nr.4 telescoping sections: 1 fixed; 3 hydraulically telescoping. Fitted with nylon wear pads adjustable wear pads on the sides

Boom Control

Distributor by proportional levers. Motor driven pump 18.5kW 96V

LMI

Electronic Load Moment Indicator. Display showing lifted load, max allowed load, tilting percentage, operating radius, angle, telescope and light indicators on the operative mode

Total Weight

Approx.25000kg

Max Capacity

25000kg

Optional

Hydraulic winch; chain hoists; carry-deck; battery charger (on board and stand-alone); manual and hydraulic jibs; cable remote control; radio remote control; working light; fire extinguisher

* Further details, please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
