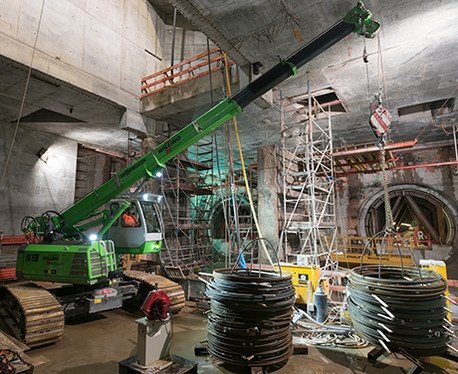

613E Telescopic Crawler Crane

Sennebogen Cranes

613E Crawler Cranes

Lifting Capacity : 16t
Boom height : 24m
Engine capacity : 92kW

Sennebogen is a leading manufacturer of the  telescopic crawler crane, with over 25 years of experience in constructing and manufacturing telescopic cranes. The combination of quality “Made in Germany” and the innovative concept of the telescopic crane offers various benefits:

  • Full Power Boom: Driving and telescoping under load
  • Lifting capacity from 8 t to 120 t
  • Simple and robust design – long lifetime
  • Low transportation costs with shortest rigging time possible
  • Suitable for very difficult ground conditions
  • Compact design and dimensions

Engine

  • Manufacturer/type: FPT N45
  • Engine output: 92kW/125 HP
  • Cooling system: Water-cooled
  • Nominal rpm: 2200 min1
  • Fuel tank capacity 200l
  • Electric System batteries 24 V
  • Hydraulic system 2 x 155 Ah

Hydraulic-system

  • Pump unit directly mounted at the diesel engine
  • Axial piston variable displacement pump. The independent, proportional allocation of the pump quantity allows several work functions to be controlled with precision simultaneously and independently from one another
  • Pump Control – Zero-stroke control, speed-dependent adjust­ment of drive pump and axial piston regula­tor. Auxiliary functions via gear wheel pump
  • Operating Pressure – max. 330 bar
  • Hydraulic Tank – 180L
  • Control System – Servo joystick operation for work movement

Slewing drive

  • Gearbox – Compact planetary gear with hydraulic and electric rotor, integrated brake valves
  • Slewing Gear Brake – Spring-loaded disk brake, pedal for individual braking
  • Slewing Ring – Oversized slewing ring, sealed. Highly precise, powerful slewing function
  • Slewing Speed – 0-2 rpm, variable

Upper carriage

  • Design – Torsion-resistant box design, precision-crafted, steel bushings for boom bearings. Extremely service-friendly design, longitudinal engine
  • Electrical System – Central electrical distributor, battery disconnect switch
  • Cooling system – 3 circuit cooling system with high cooling capacity, electronically regulated fan drive for water, charge air and oil cooler
  • System – Rearview and right sideview cameras, LED lighting package

Under carriage

  • Design – Very strong, hydraulically telescoping crawler undercarriage, with integrated, protected drive transmission
  • Drive – Strong travel drive featuring 2-stage variable- dis placement
    hydraulic motor with direct-mounted, auto-matically actuated brake valve and compact planetary gear on each running gear side
  • Parking brake – Spring-loaded disk brake
  • Travelling gear – Maintenance-free tractor running gear with hydraulic chain tension, 600mm 3-grouser base plates
  • Speed – 0-1.2 / 0-2.2 km/h

Operators cab

  • Cab type – MultiCab, can be elevated 1.75 m
  • Equipment – Hydraulically elevating cab as standard. Flexibly mounted comfortable cab with super sound insulation. All-weather design, all-round glazing in safety glass and large roof window, adjustable windshield. Flexibly mounted comfortable seat, adjus­table
    according to weight and shock-absorbent. Dashboard overview with swiveling steering column. Variable, controllable cab heating with air circulation stage and particle filter, automatic climate control

Service weight

  • Mass – With 18.8 m telescopic boom, 5 m fly boom, 10,5 t hook,
    3-grouser base plates
    600 mm approx. 24,300 kg
  • 700 mm approx. 24,650 l<g
  • 800 mm approx. 25,000 l<g
    Operating weight varies by model

* Further details see adobe specifications download or please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
