V70R Pick and Carry Cranes

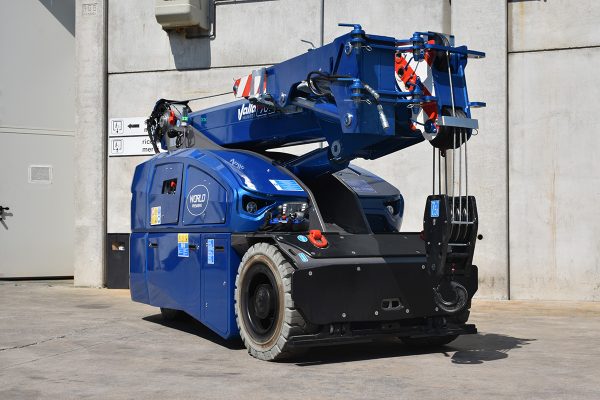

V70R Pick and Carry Crane
Capacity: 7.0 t
Overall Width: 1400 mm
Total Weight: 7600kg
Capacity
7000kg
Total Weight
7600kg
Dimensions
3690 x 1400 x 1895 mm

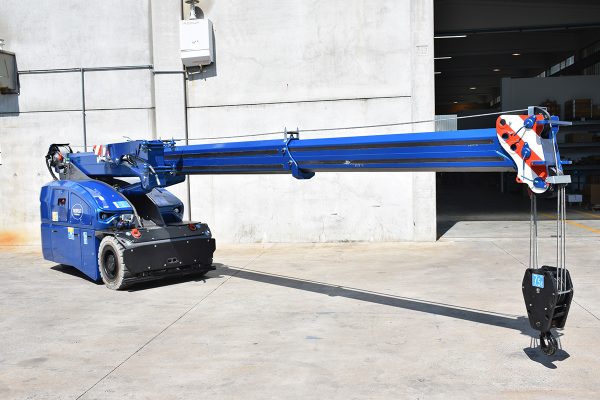

Boom
9.4m
Front Wheels
No.2 Cushion 22x8x16
Rear Wheels
No.2 S.Ee 16×6-8
Hydraulics
220 Bar – 8kW AC
Front Wheel Drive
2 x 1.9kW AC
Rear Steering
600 W AC – 180°
Battery
80V – 400Ah
Optional
Hydraulic winch, Radio control, Self leveling forks, Non marking tyres
* Further details, please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
