V130RX Pick and Carry Cranes
V130RX Pick and Carry Crane
Capacity: 13.0 t
Overall Width: 1500 mm
Total Weight: 11400kg
Capacity
13000kg
Total Weight
11400kg

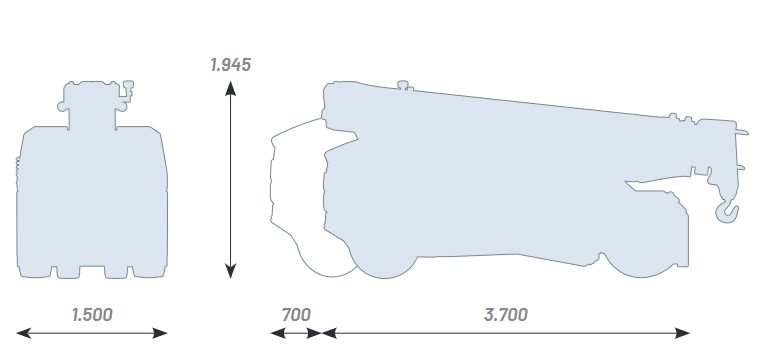

Dimensions
3700 x 1500 x 1945 mm
Front Wheels
No.2 / 355/50-20″
Rear Wheels
No.2/250-15″
Hydraulics
220 Bar – 16kW AC
Front Wheel Drive
E2 x 6.5kW AC
Rear Steering
180°
Battery
80V – 640Ah
Counterweights
Removable No2 x 2100kg
Optional
Winch, Foldable mechanical jib, Foldable hydraulic jib, Self leveling forks, Lithium batteries, ATEX transformation
* Further details, please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
